Create an SSH Tunnel for MySQL Remote Access

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $100 credit.
This credit will be applied to any valid services used during your first 60 days.

This guide will show you how to make a secure connection to your remote MySQL or MariaDB server from your local computer, using an SSH tunnel. This is useful if you want to use administration tools on your local computer to do work on your server.

An SSH tunnel is an encrypted tunnel made through an SSH protocol connection. You can use an SSH tunnel to communicate remotely with the MySQL database. After following these instructions, you’ll be able to connect to localhost on your workstation using your favorite MySQL management tool. The connection will be securely forwarded to your Linode over the Internet.

Note
MariaDB is a fork of MySQL and considered a drop-in replacement. Although this guide refers to MySQL, it applies equally to MariaDB as well.

Prerequisites

  • MySQL is installed.
  • MySQL is configured to listen on localhost (127.0.0.1). This is enabled by default.

How to Access MySQL Remotely by Creating an SSH Tunnel with PuTTY

This section will show you how to create an SSH tunnel to MySQL on Windows, using the PuTTY tool.

Setting Up the Tunnel

First, you need to establish a basic connection to your Linode:

  1. Download PuTTY.

  2. Save PuTTY to your desktop.

  3. Double-click the PuTTY file to begin - no need to install. You will see the following window:

    The session login screen in PuTTY on Windows.

  4. Enter the hostname or IP address of your Linode in the Host Name (or IP address) field.

  5. In the left-hand menu, go to Connection -> SSH -> Tunnels.

  6. In the Source port field, enter 3306.

  7. In the Destination field, enter 127.0.0.1:3306. See the final configuration below:

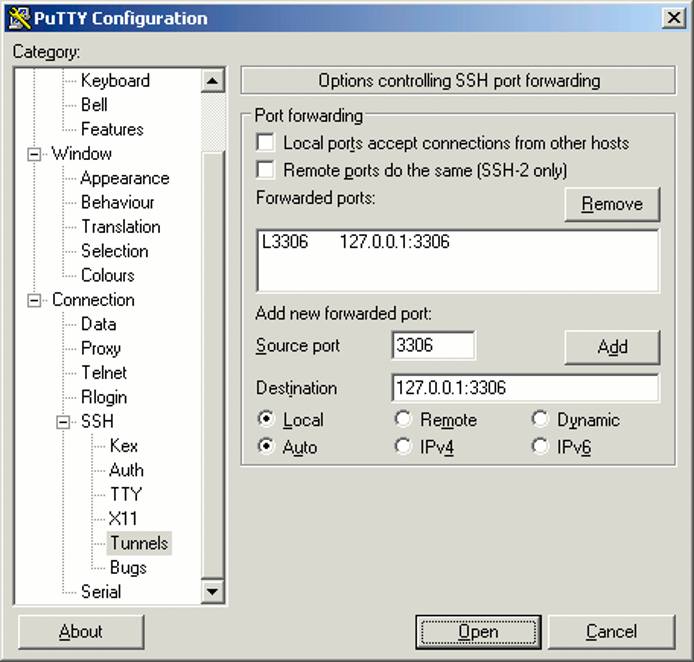

    Tunneling a remote MySQL connection through SSH with PuTTY on Windows.

  8. Click Open to start the SSH session.

  9. If you haven’t logged in to this system with PuTTY before, you will receive a warning similar to the following. Verify that this server is the one to which you want to connect, then click Yes:

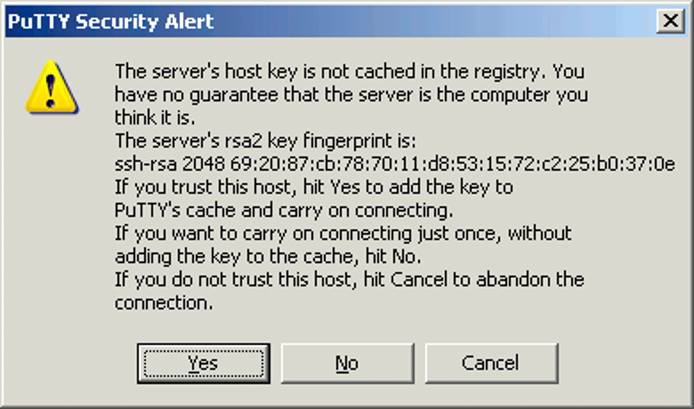

    An unknown host key warning in PuTTY on Windows.

    Note

    This warning appears because PuTTY wants you to verify that the server you’re logging in to is who it says it is. It is unlikely, but possible, that someone could be eavesdropping on your connection and posing as your Linode. To verify the server, compare the key fingerprint shown in the PuTTY warning - the string of numbers and letters starting with ssh-rsa in the image above - with your Linode’s public key fingerprint. To get your Linode’s fingerprint, log in to your Linode via the Lish console (see the Console tab in the Linode Manager) and executing the following command:

    ssh-keygen -l -f /etc/ssh/ssh_host_rsa_key.pub


    The key fingerprints should match. Once you click Yes, you won’t receive further warnings unless the key presented to PuTTY changes for some reason; typically, this should only happen if you reinstall the remote server’s operating system. If you receive this warning again for the same Linode after the key has already been cached, you should not trust the connection and investigate matters further.

  10. Direct your local MySQL client to localhost:3306. Your connection to the remote MySQL server will be encrypted through SSH, allowing you to access your databases without running MySQL on a public IP.

Create an SSH Tunnel on Mac OS X or Linux

This section will show you how to create an SSH tunnel to MySQL on Mac OS X or Linux.

  1. Install a MySQL client. Installing MySQL server comes prepackaged with an installation of the client. To install the client only:

    MacOS

    brew install --cask mysql-shell


    Ubuntu/Debian

    sudo apt install mysql-client

  2. Open a command prompt and run the following command to open the SSH tunnel.

    ssh user@example.com -L 3306:127.0.0.1:3306 -N


    Replace <user@example.com> with your SSH username and your server’s hostname or IP address. The long string of numbers in the command lists the local IP, the local port, the remote IP, and the remote port, separated by colons (:).

    -L - binds a local port to the remote host post. -N - means forwarding ports.

    Note

    If you’re already running a local MySQL server on your workstation, use a different local port (3307 is a common choice). Your new command would look like this:

    ssh user@example.com -L 3307:127.0.0.1:3306 -N

  3. Open a new terminal window. Direct your local MySQL client to 127.0.0.1:3306 with the MySQL server username and password.

    MacOS

    mysqlsh --host=127.0.0.1 --port=3306 -u user -p


    Ubuntu/Debian

    mysql --host=127.0.0.1 --port=3306 -u user -p


    Your connection to the remote MySQL server will be encrypted through SSH, allowing you to access your databases without running MySQL on a public IP.

  4. When you’re ready to close the connection, issue a CTRL-C command or close the command prompt window. This will close the SSH tunnel.

Persistent SSH Connections

If you need a persistent SSH tunnel, consider using autossh. autossh starts and monitors an SSH connection, and restarts it if necessary.
